Measure for Made-to-MeasureShutters with Confidence

Measuring Guide

Accurate measurements help us manufacture shutters that are made specifically for your windows.

Follow our simple step-by-step guide and take your time.
View Measuring Guides

Before You Start

Steel tape
measure
Pen & paper
Phone
camera
Step ladder if
required
Someone to help
for larger windows
1

Choose Your Fitting Type

There are two main ways shutters can be fitted.

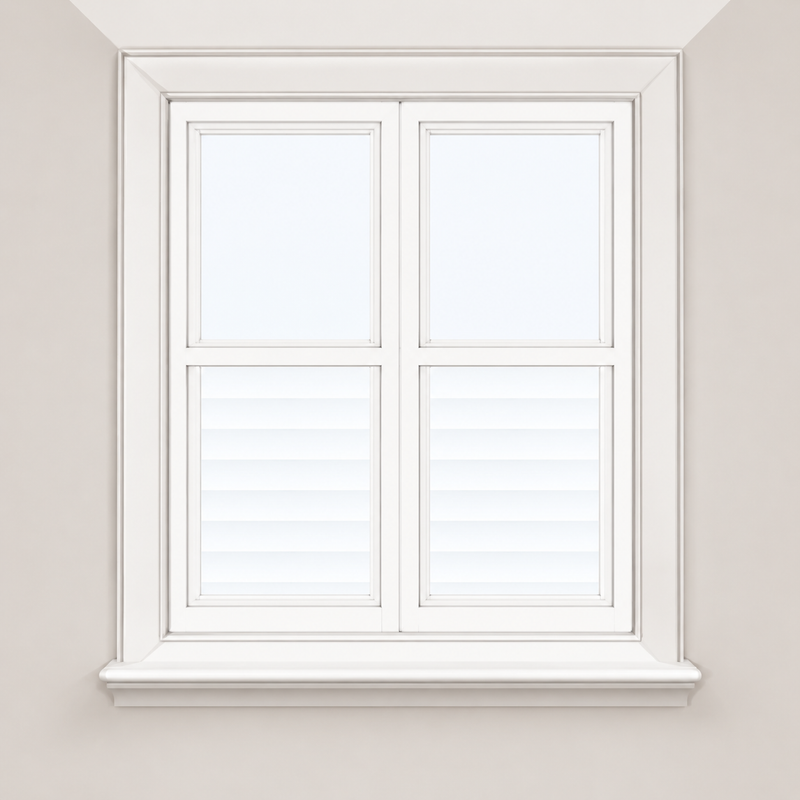

Inside Recess

The shutter frame fits inside the window opening.

  • Neat, built-in appearance
  • Best for windows with a clear recess

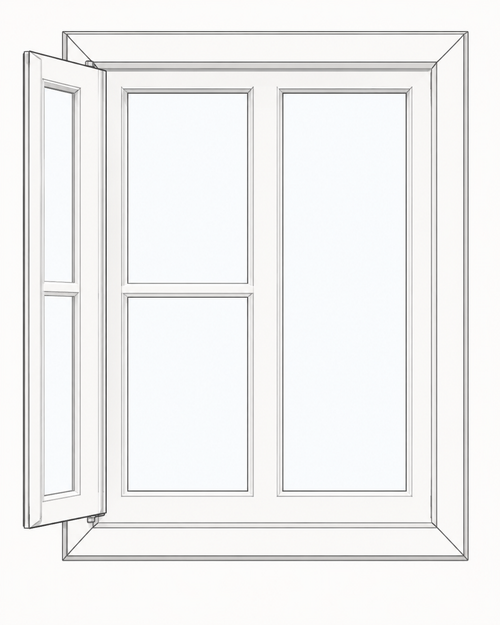

Outside Recess

The shutter frame fits around the outside of the opening.

  • Ideal for shallow recesses
  • Useful when there are obstructions
2

Measure the Width

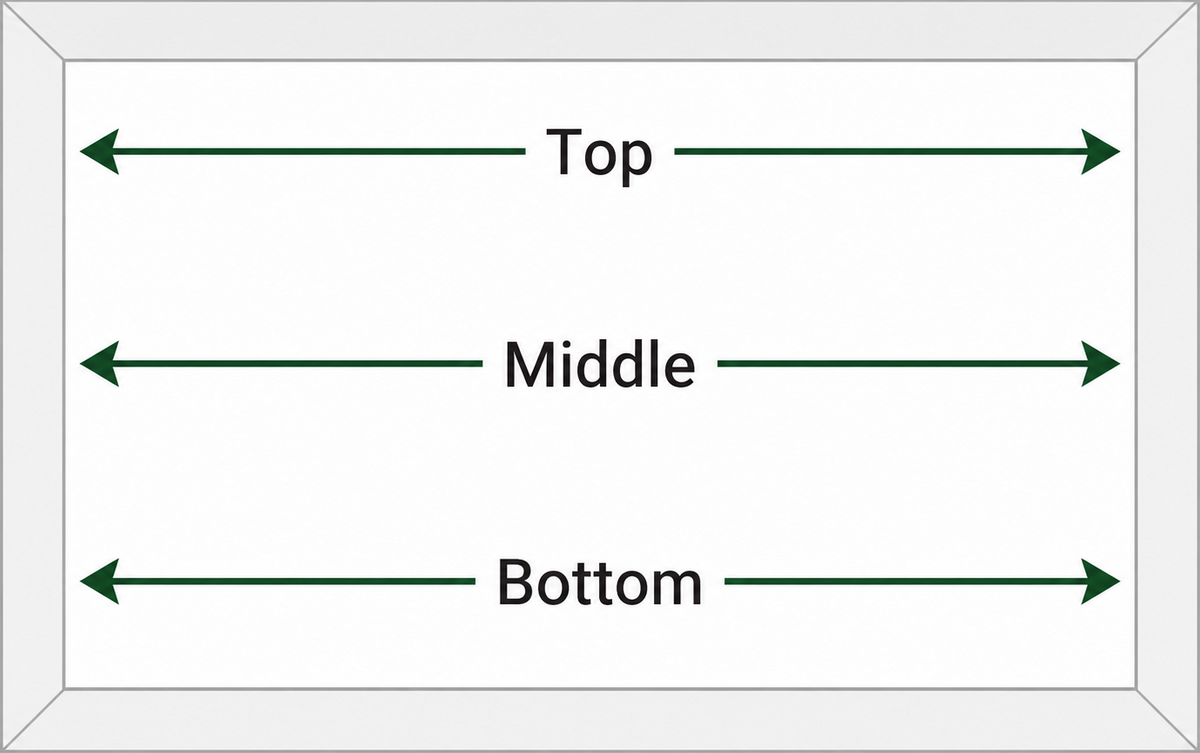

Measure the width of the opening in three places: top, middle and bottom.

Use the smallest width measurement when ordering.

Example

Top1204mm
Middle1200mm
Bottom1202mm
Use: 1200mm
3

Measure the Drop

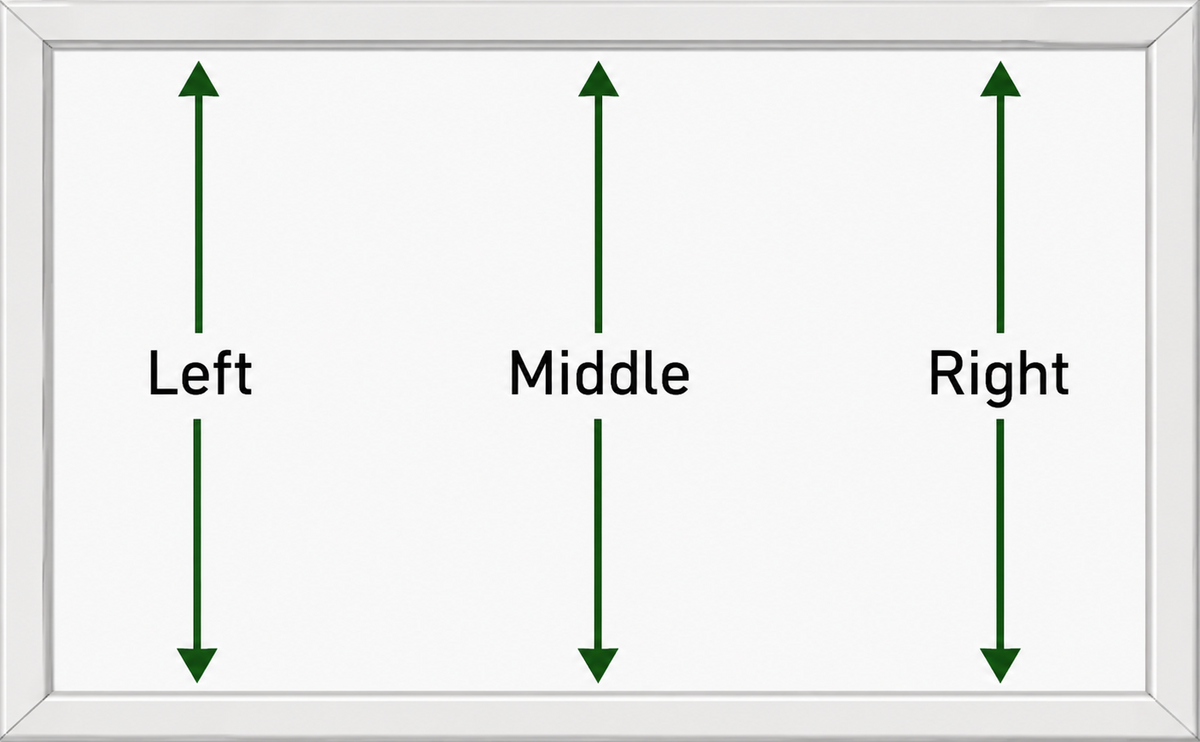

Measure the height (drop) of the opening in three places: left, middle and right.

Use the smallest drop measurement when ordering.

Example

Left1508mm
Middle1510mm
Right1506mm
Use: 1506mm
4

Check the Recess Depth

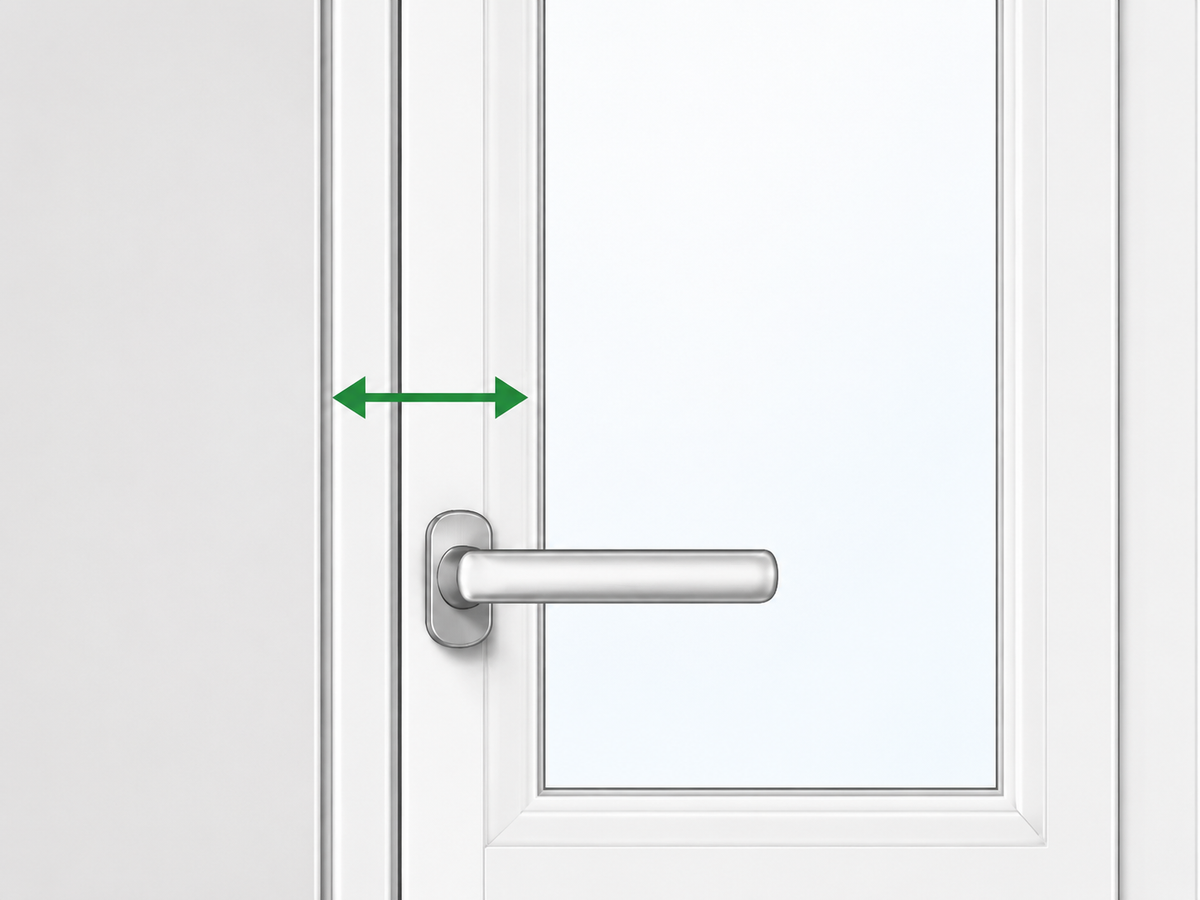

Measure from the front of the wall back to the window frame or handle. This ensures your shutter frame has enough room to fit correctly.

Look Out For

Window handles Existing blinds Tiles or sill lips Window locks Trickle vents Anything that protrudes Security sensors
5

Check for Obstructions

Look around the window and check whether anything may affect the shutters opening or fitting.

If unsure, take clear photos and contact us before ordering.

Handles
Radiators
Tiles
Worktops
Taps
Alarm Sensors
Skirting boards
Curtain poles
Existing blinds
Uneven plaster
6

Take Photos

Before placing your order, we recommend taking:

  • One photo straight on
  • One from the left side
  • One from the right side
  • Close-ups of handles or obstructions

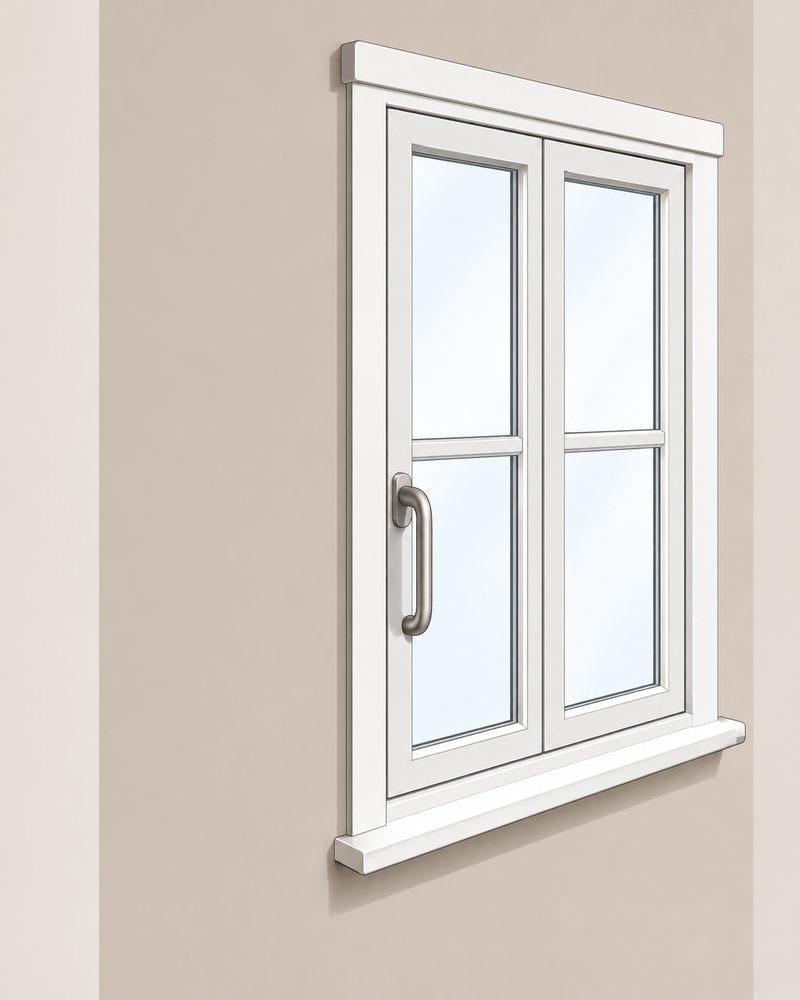

Straight on

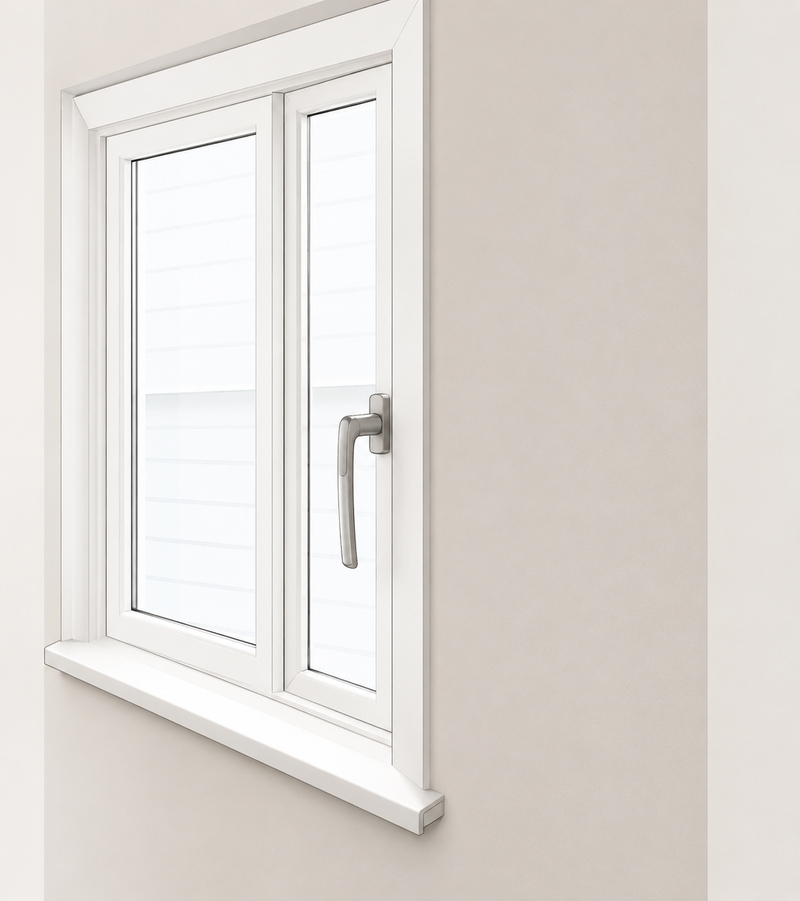

Left side
Right side

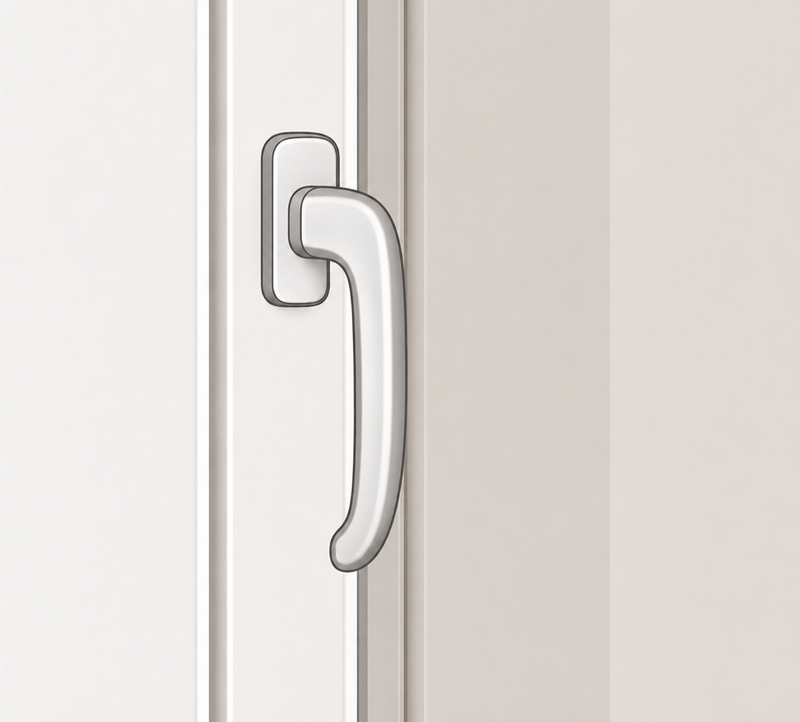

Close-up

Measuring Checklist

Measurements are in millimetres Width measured top middle bottom Drop measured left middle right Smallest measurements used 6mm deduction (inside recess only) Recess depth checked Obstructions considered Photos taken Contacted us if unsure

Important Notice

For supply-only orders, shutters are manufactured using the measurements you provide.

Please check all measurements carefully before placing your order.

Made-to-measure shutters cannot usually be returned if incorrect measurements have been supplied.

This does not affect your statutory rights if goods are faulty, damaged or not as described.
